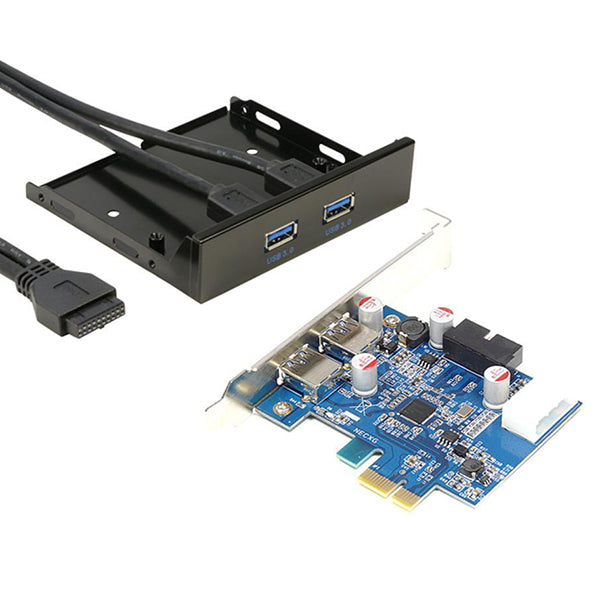

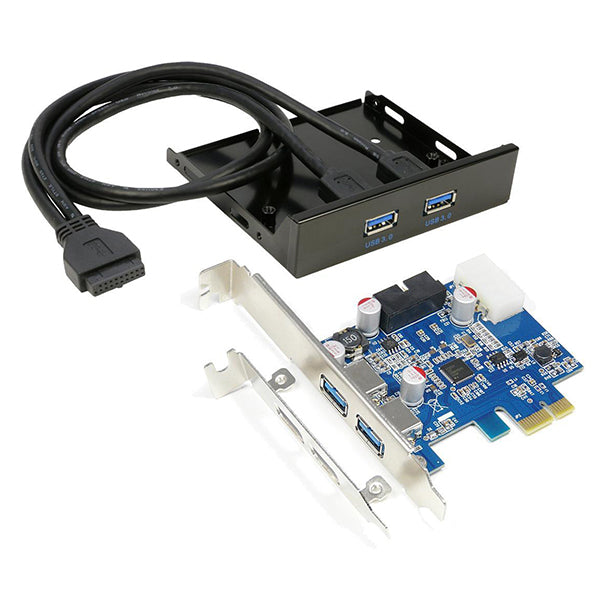

PCI-E to USB3.0 Card + 3.5inch 2Ports USB 3.0 HUB Front Panel (Set)

RIITOP

  • $28.95
  • Save $7


PCI-E to USB3.0 Card + 3.5inch 2Ports USB 3.0 HUB Front Panel (Set)

Please Note:
1. Before bid,please comfirm your mainboard have one PCI-e x1 (or above) slot, 1* 4-pin molex power connector, 1* 15pin sata power connector, 1* floppy expansion bay free to install,thanks!
2. CD Driver for card instruction: please insert the disc into cd/dvd-rom, open it, find 'NEC USB3.0 / RENESAS-USB3-Host-Driver-30230-setup.exe' to install the driver file.
3. 4-pin molex power port on usb3.0 card need to be connectted, ortherwise it will NOT work, please note that.

Features:

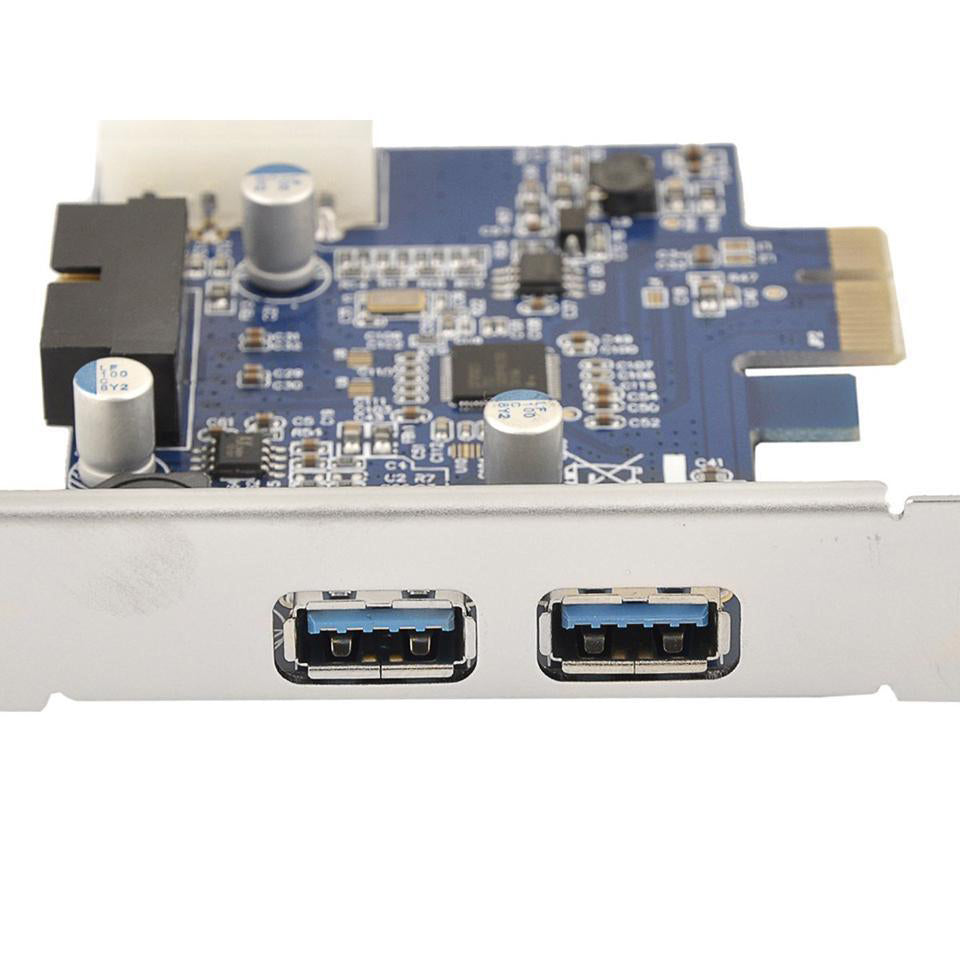

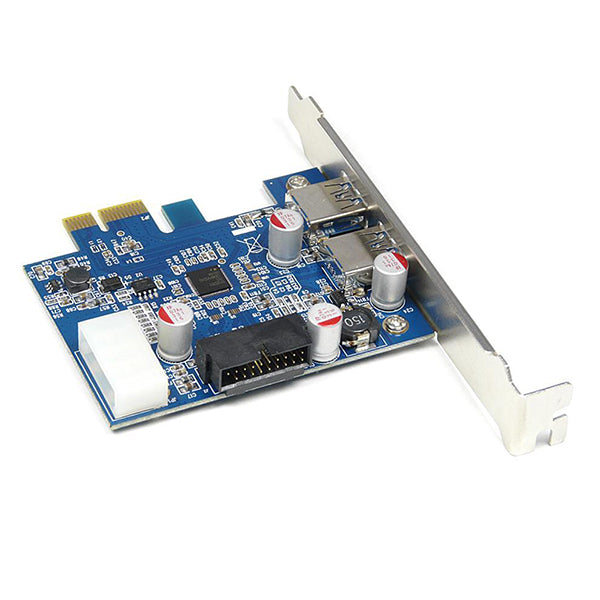

Part1: PCI-E to USB 3.0 Converter Card Adapter.
Renaissance NEC 720201 chipset.
Compliant with PCI Express Base Specification 2.0.
Compliant with USB 3.0 Super-Speed (5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
Supports 1 downstream ports for all speeds Built-in 4-pin power connector for receiving extra power supply from system.
Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
Bus Interface: PCI-Express x1 Slot.
Interface: 2x USB 3.0 Female (back), 1x 19/20-pin Connector, 1x 4-pin Molex Power Port.
OS Support: Windows XP/Vista/7/8/10 (32-bit and 64-bit).

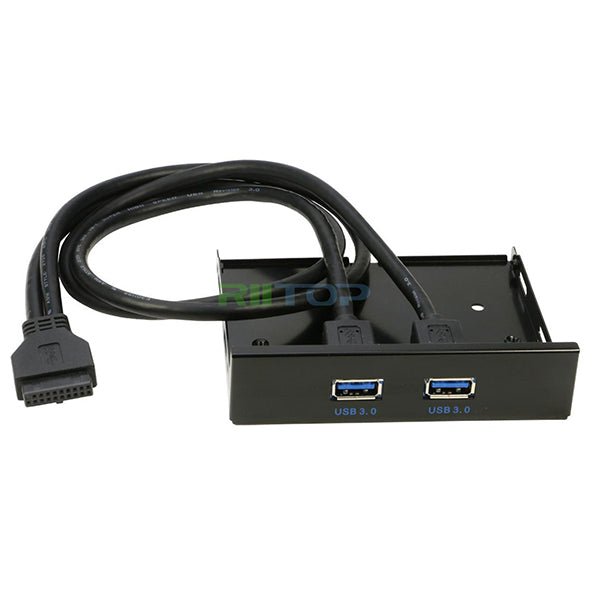

Part2: 3.5 inch Dual 2-Port USB 3.0 Front Panel
Interface: 2x USB 3.0.
Transfer Speed: Up to 5.0GB/s USB 3.0 SuperSpeed.
Fits: PC 3.5" Open Bay Space.
Cable Length: 60cm
Compatible with Windows 10/8/7/Vista/XP/2000.
Plug and Play.
Hot Swappable.
No external power required.
Backwards compatible with USB 1.1 and 2.0.

Package Contents:
1x PCI-Express USB 3.0 Adapter Card.
1x 3.5 inch USB3.0 Front Panel.
1x Driver CD.
Screws.
