NVMe to USB Docking Station Adapter, RIITOP External NVMe SSD to USB Type C Reader Adapter for M.2 (M Key) NVMe SSD Drive


  • $31.99
  • Save $8

Please Note:

1. The temperature of the entire operating SSD may exceed 60 ° C. Please do not touch the SSD during operation.

2. It can NOT support "Hot-Plugging". Please don't exchange the SSDs when connecting. USB 3.1 (Gen 2) Type-C Interface The docking Station adopts USB 3.1 (Gen2), Type-C interface which supports high-speed transfer rates of up to 10 Gbps.


Convert Your NVMe M.2 SSD to USB 3.1 as an external drive

RIITOP NVMe to USB Adapter is ideal for those who own multiple NVMe M.2 SSDs that need to be frequently plug and unplug.

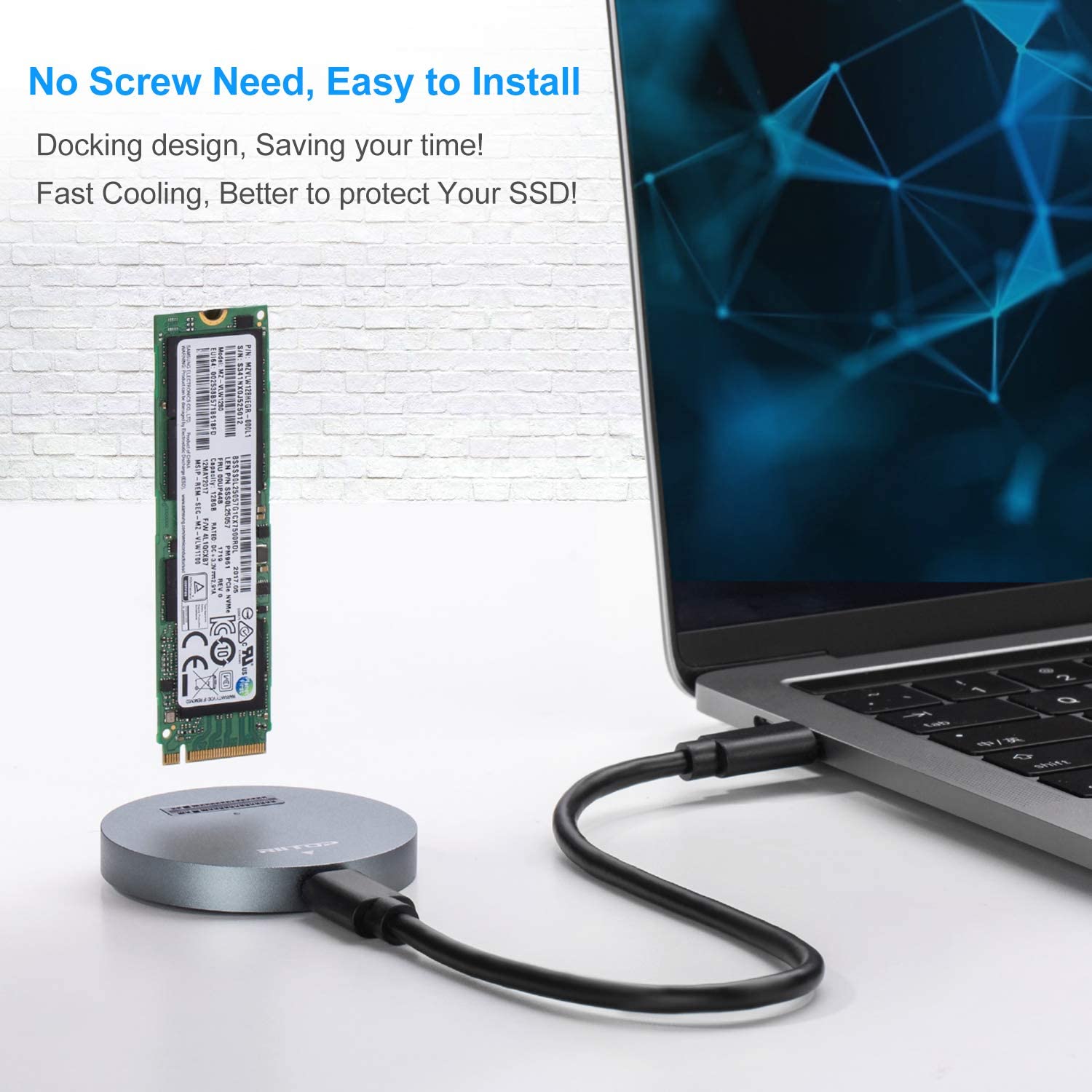

No mounting screws need, simply insert the NVMe M.2 device and connect the USB cable, and you can start using immediately.

The SSD docking base is a USB 3.1 Type-C adapter that allows users to insert NVMe M.2 devices vertically. Please insert carefully to avoid damaging the connector of SSD Designed Exclusively for NVMe M.2 SSD Supports the non-volatile memory express (NVMe) SSD,

The connector standard adopts NVMe M.2 SSD


Compatible with M.2 NVMe SSD ONLY:

Samsung SM951- NVMe, PM951-NVMe, 950 Pro NVMe SSD, SM961, PM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro. INTEL 600P. Liteon T10. And other PCIE M.2 NVMe SSD.

NOT Support PCI-e Based M Key AHCI SSD, or any B/B+M Key SATA Based SSD.

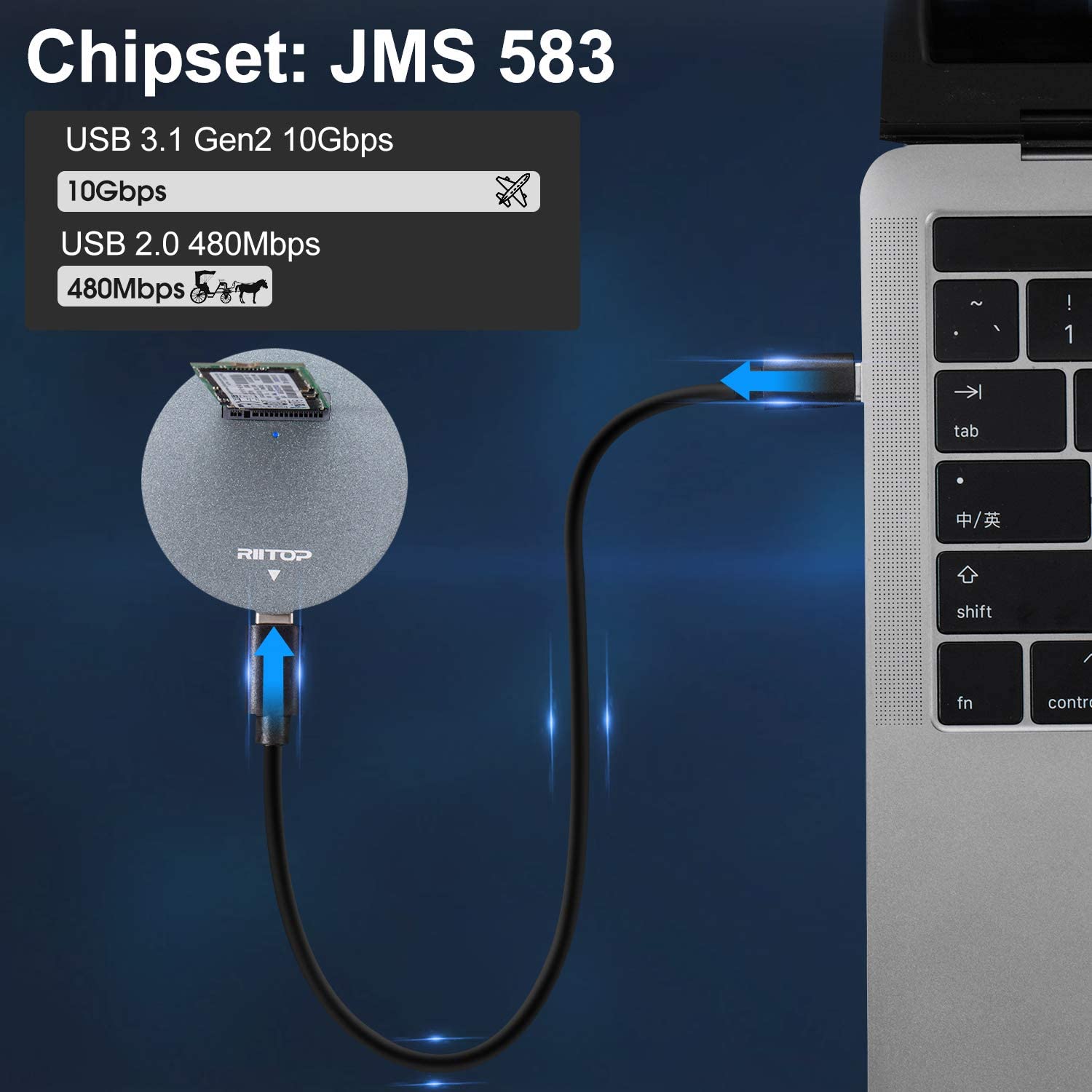

Chipset: JMS583

USB 3.1 Gen 2 to PCIe Gen3 x2 Bridge Controller

The JMS583 is a USB 3.1 Gen 2 to PCIe Gen3 x 2 bridge controller between USB host and PCIe storage device.

The USB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate.

Meanwhile, the downstream port of the JMS583 is compatible with storage device with PCIe interface, such as SSD.

The PCIe port is compliant with PCIe Gen3 x 2 specifications.

Support Windows XP / 7 / 8 / 10 and Mac OS.

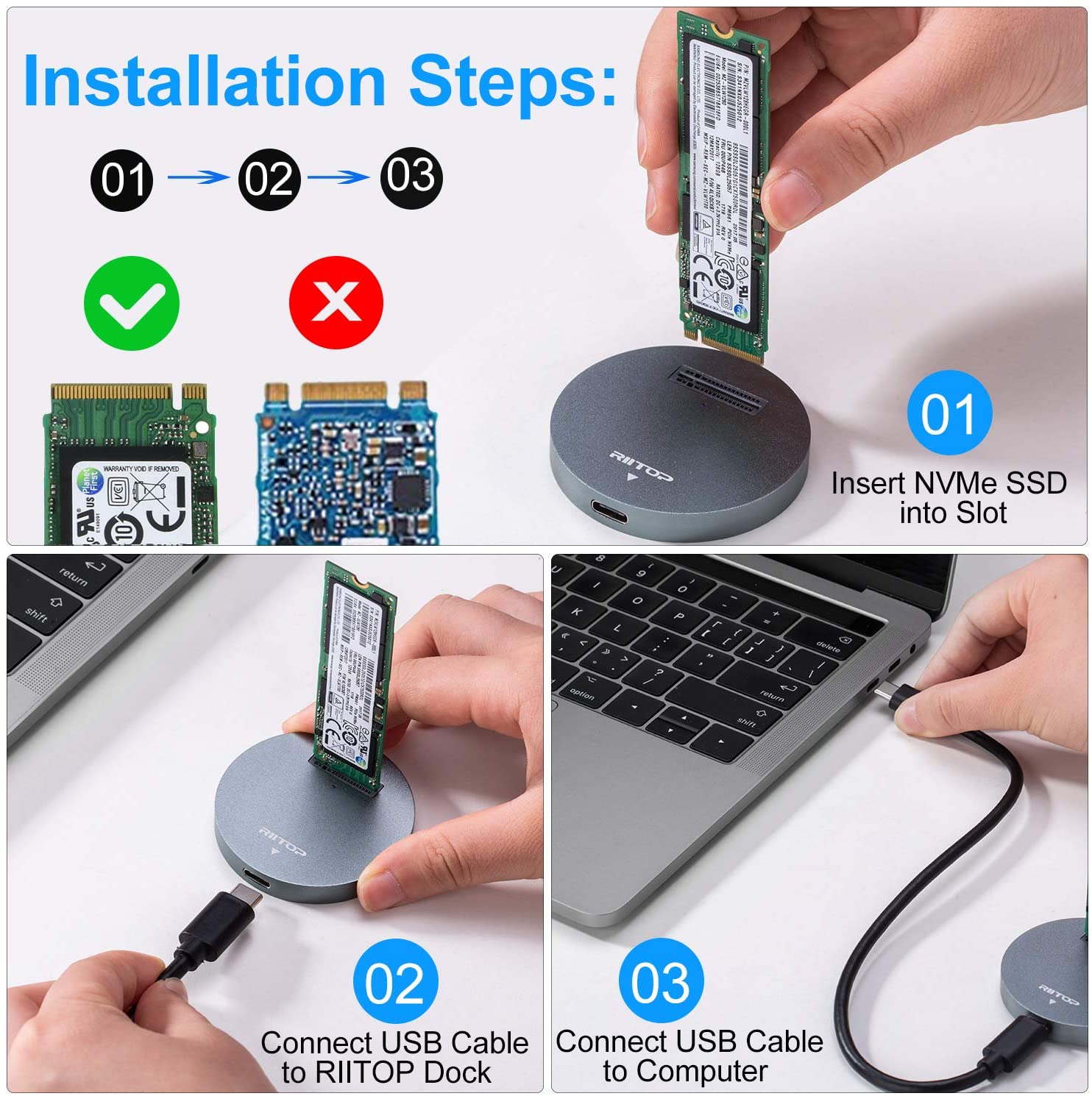

Installation Steps:

1. Insert NVMe SSD into Slot 2. Connect USB Cable to Dock 3. Connect USB Cable to Computer

Please note: it can NOT be identified if insert SSD after USB Cable connected to Computer.

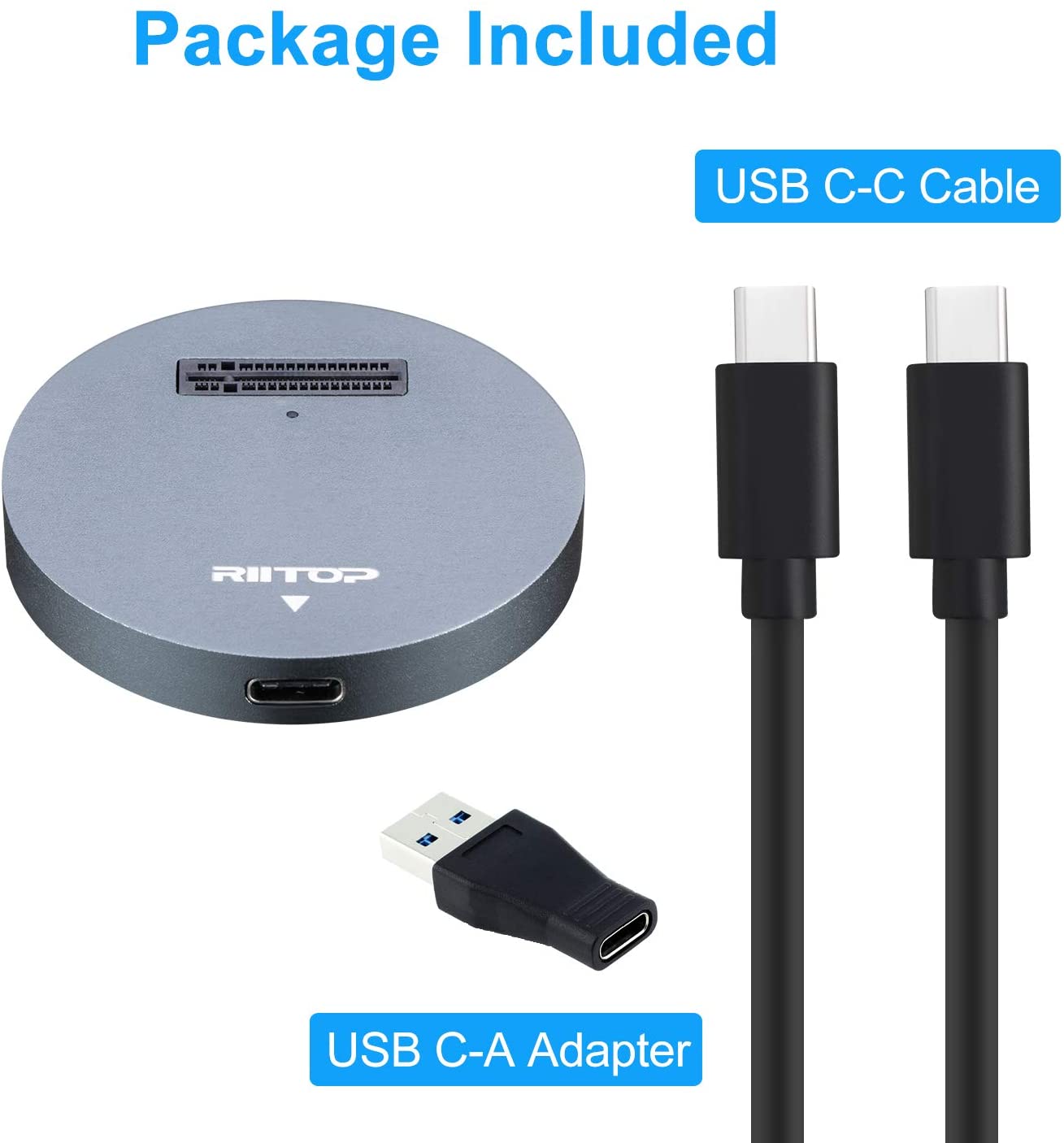

Package Including:

1x M.2 NVMe to USB Dock Docking Station.

1x USB C to USB C Cable.

1x USB C to A Adapter
