Quad NVMe PCIe Adapter, RIITOP PCIe 3.0 x8 to 4X NVMe SSD Card for M.2 (M Key) SSD 2280/2260/2242/2230 (Compatible with Non-Bifurcation Motherboard)

RIITOP

$195.99

Please NOTE:

1. This M.2 PCIe Adapter can Only Support M.2 PCI-e Based M Key Nvme SSD, DO NOT support PCI-e M Key AHCI SSD, SATA based B+M key or B Key SSD.

2. Please download driver of SSD from the brand official website if "Disk Management" or "Device Management" can not show the SSD.

3. Old MB can not support Booting from "NVMe", Please confirm the MB's specification.

4. Each SSD costs PCI-e 3.0 x4 Channel, NOT whole PCI-e 3.0 x8. When Signgle SSD installed, it's read/write speeds up to 3.5GB/s and 3.2GB/s. When Four all installed, they will share the 8GB/s Bandwidth.

Features:

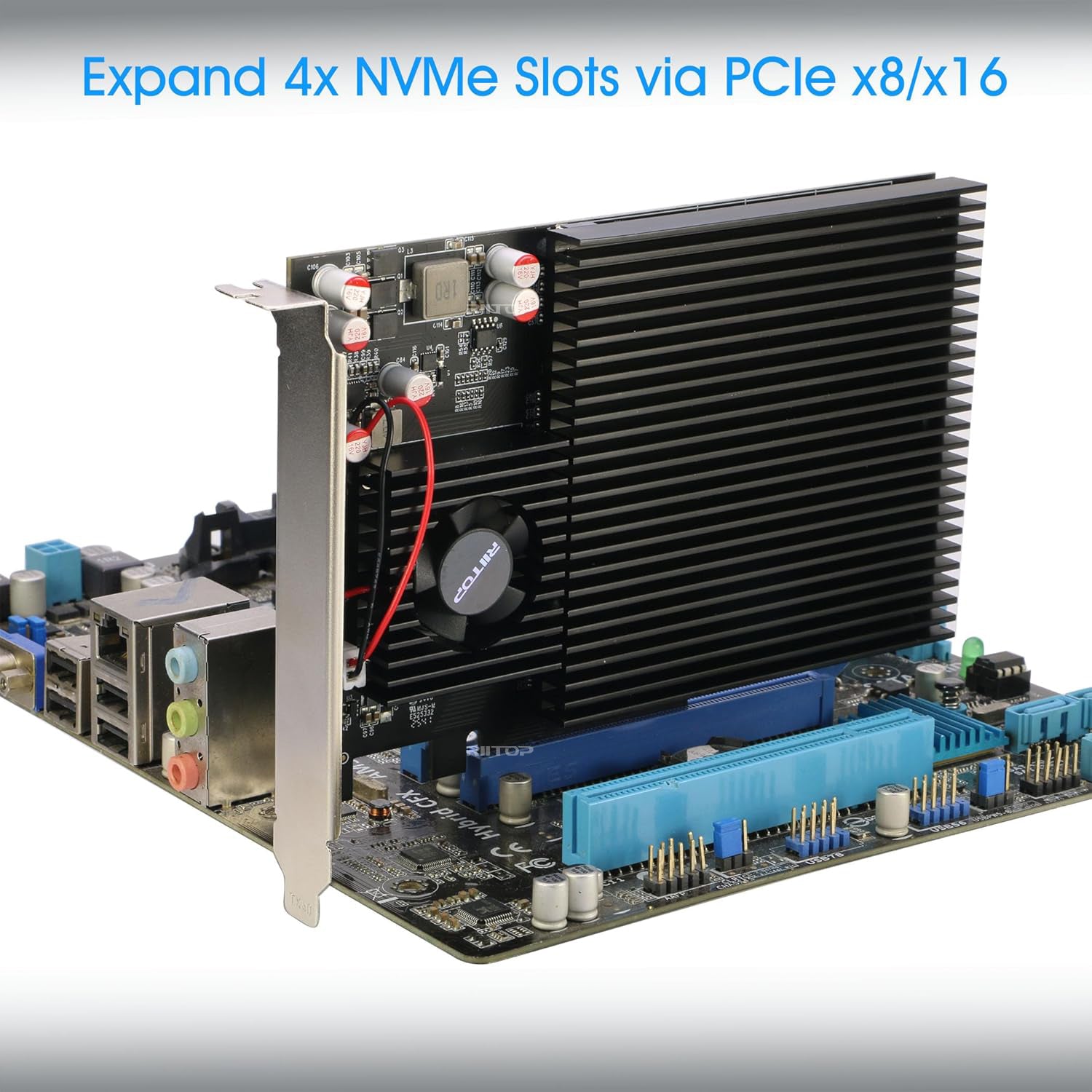

[Quad NVMe PCIe Adapter] RIITOP Quad NVMe PCIe Adapter allows you add 4x M.2 NVMe SSD to Mainboard via a single PCI-e 3.0 x8 Slot, Especially suitable for Motherboard without PCIe Bifurcation.

[ASM2824 Chipset] Built‑in Lane Splitting, No Bifurcation Required - Features integrated PCIe switch chipset ASMedia – ASM2824. It works automatically, even on motherboards that do not support PCIe bifurcation, recognizing all four drives instantly for true plug‑and‑play compatibility.

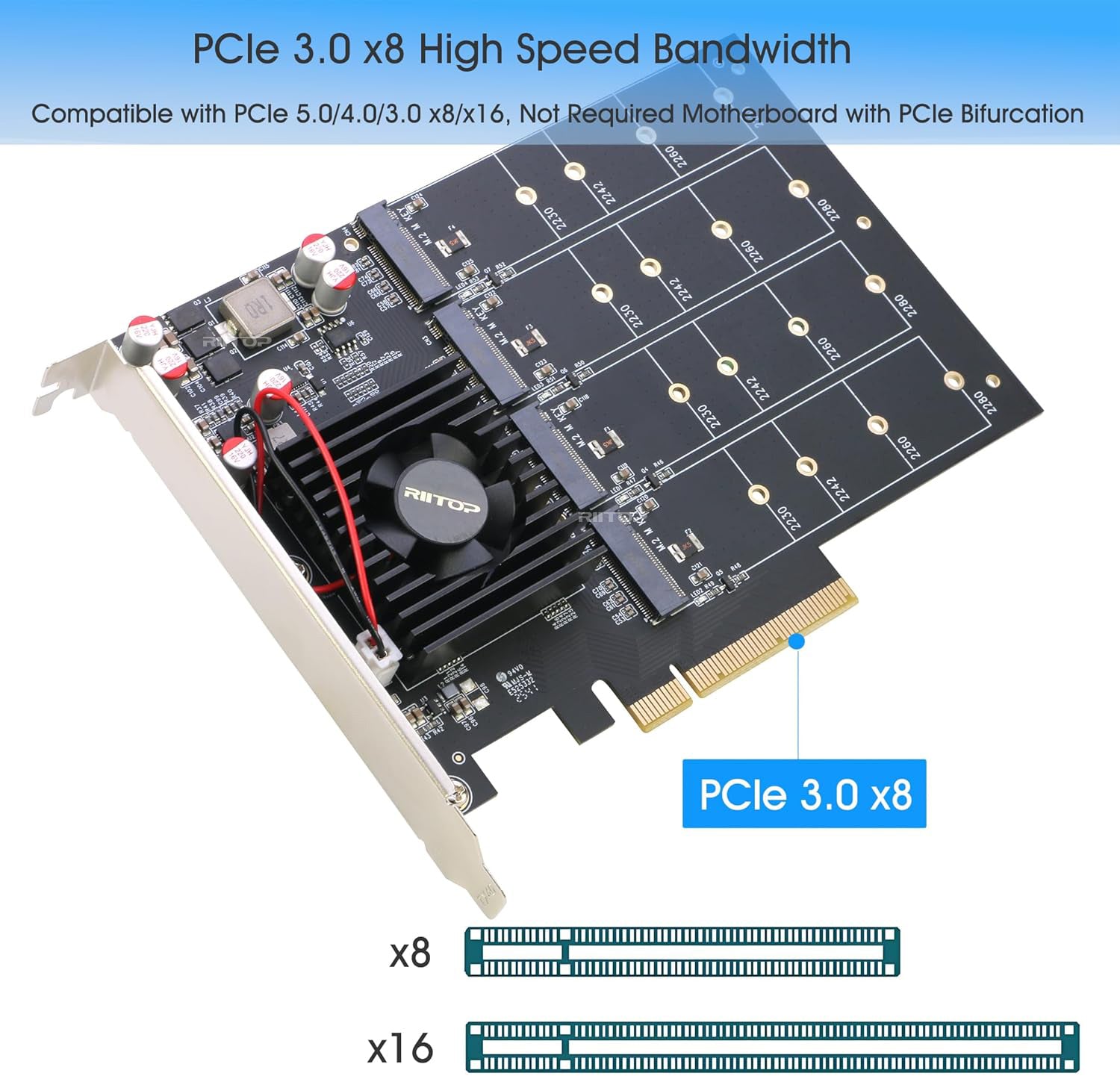

[PCIe 3.0 x8 High‑Speed Bandwidth] ] RIITOP Quad NVMe Adapter Utilizes a PCIe 3.0 x8 interface, delivering up to ~8 GB/s Total Bandwidth. Enables simultaneous high‑speed read/write operations across all drives, ideal for gaming rigs, video editing, and data‑intensive tasks.

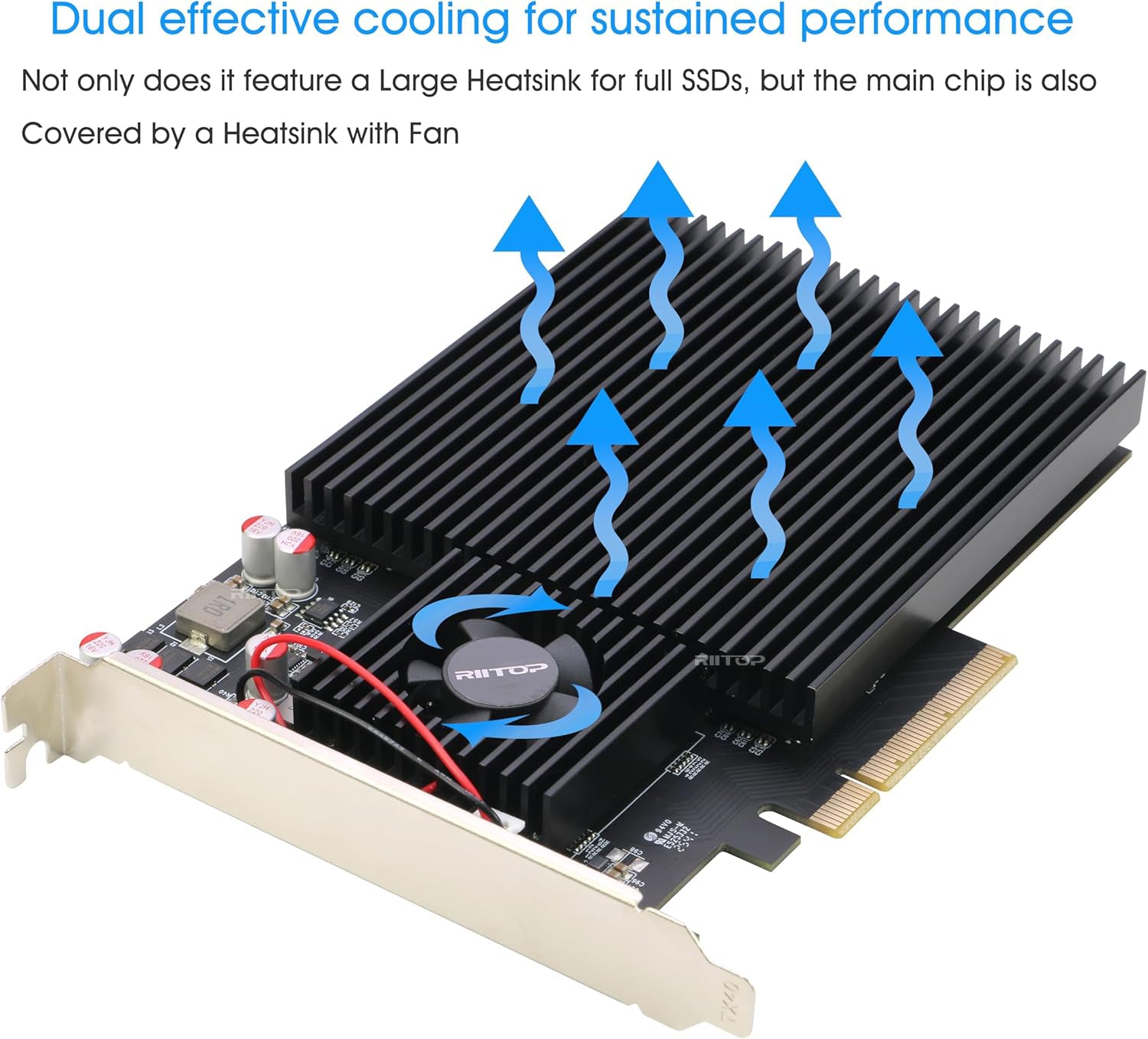

[Effective Cooling for Sustained Performance]RIIOP PCIe NVMe 4Port Card not only Includes a Large Aluminum Heatsink for all slots to actively draw heat away from NVMe SSDs, but also a Fan covering on Main Chipset, Both of them preventing thermal throttling and ensuring SSDs stable, long‑term reliability.

Compatibility:

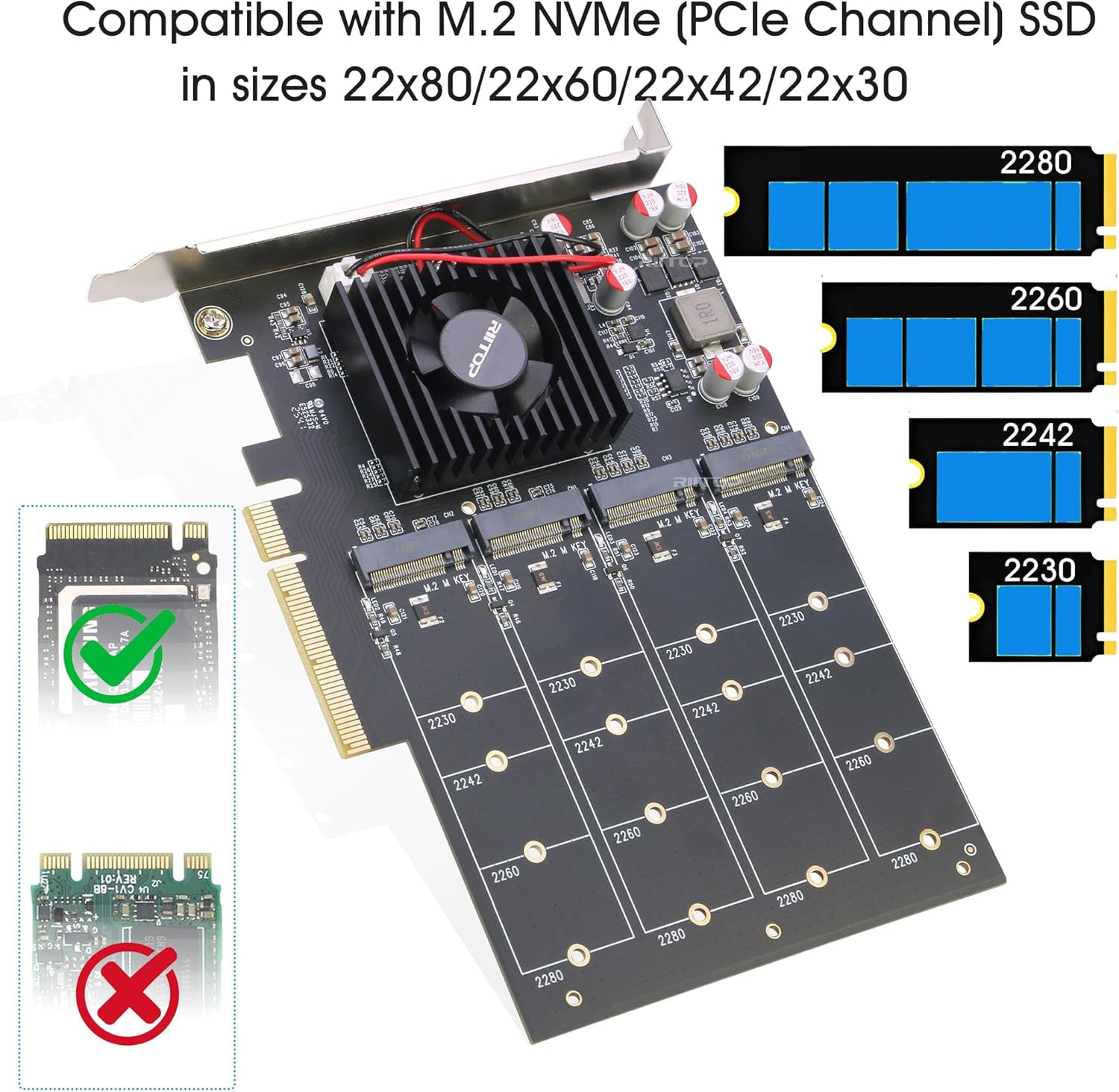

Compatible with M.2 SSDs (PCI-e NVMe ): SSD in Size 80x22mm, 60x22mm and 42x22mm. Hardware Requirement: Available PCI-e x8/x16 Slot on Mainboard, Compatible with PCI-e 4.0/3.0/2.0/1.0 standards.

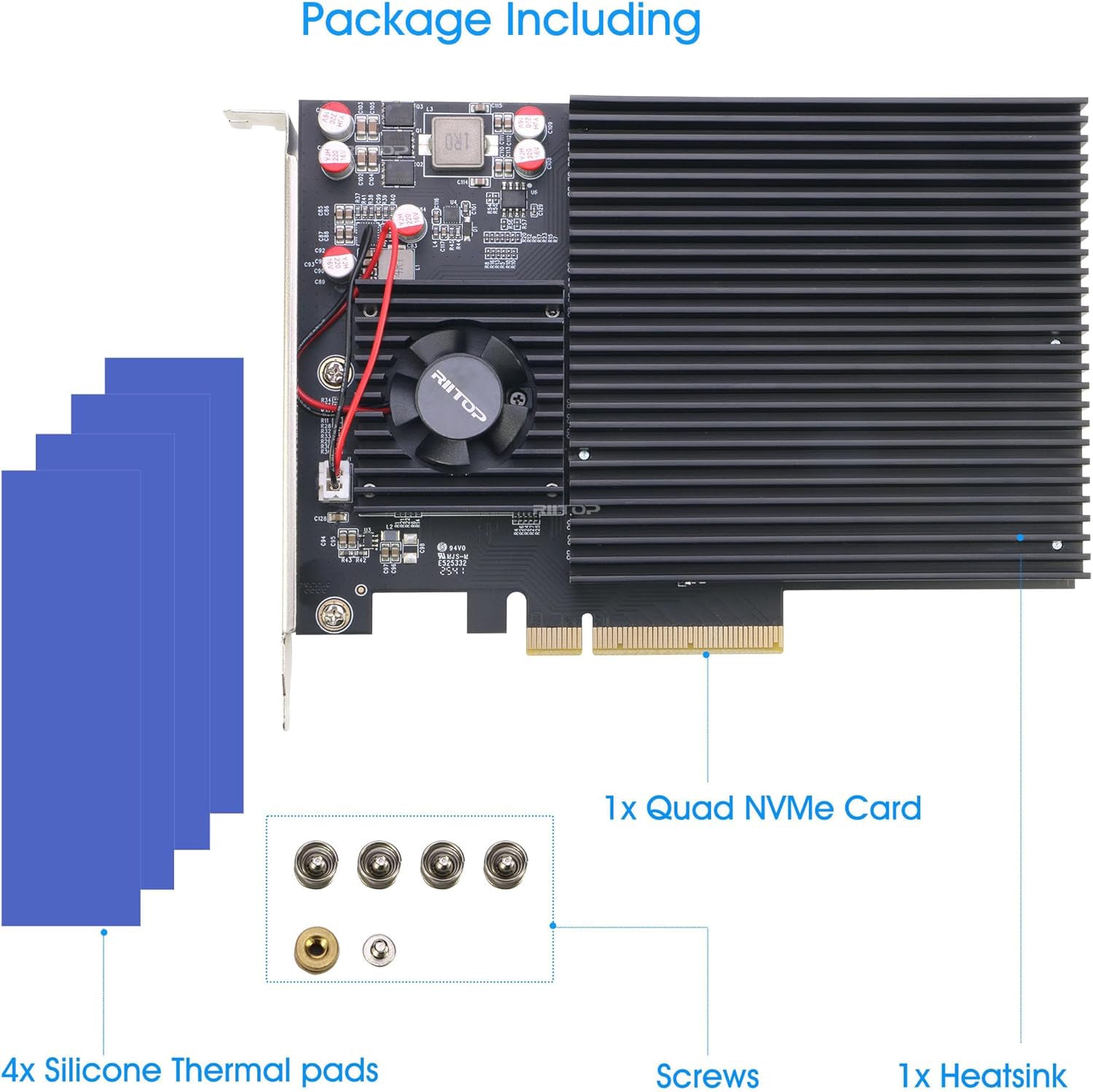

Package Includes:

1x RIITOP PCIe 3.0 x8 to 4X NVMe SSD Card for M.2 (M Key) SSD.
