Quad NVMe PCIe 5.0 Adapter with Fan, RIITOP PCIe 5.0 x16 to 4X NVMe SSD Card (Comptible with PCI-e Bifurcation Motherboard)

Please note:

1. RIITOP NVMe Adapter does not support hardware RAID. Soft RAID can be configured via Windows (e.g., Windows 10/11 Storage Spaces) or thirdparty software. For optimal compatibility in RAID configurations, using identical SSD models is recommended.

2. If the motherboard does not support PCIe x16 bifurcation, only one SSD will be recognized. If BIOS can only set X8X4X4 or X4X4X8 mode can only recognize 3 x NVMe SSDs.) Please verify bifurcation support in your motherboards manual or on the manufacturer's website before purchase.

Features:

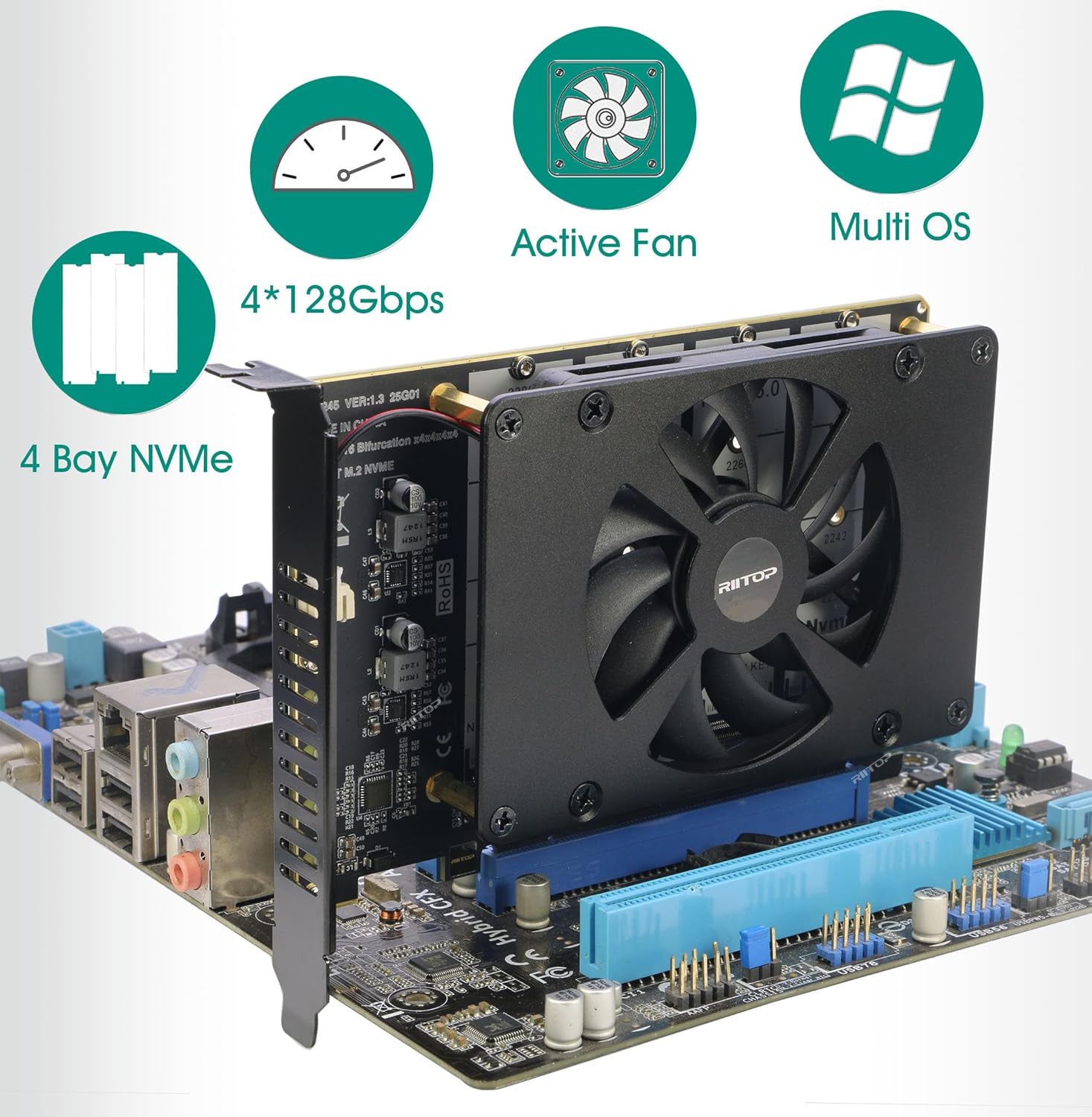

RIITOP Quad NVMe PCIe 5.0 Adapter enables simultaneous installation of 4x NVMe SSDs through a single PCIe 5.0 x16 slot on a compatible motherboard, which supports PCIe x16 bifurcation for fullspeed data transfer, with a total theoretical bidirectional bandwidth of up to 4*128 Gbps (PCIe 5.0 x4 per drive).

Hardware Requirement: 1x Available PCIe 5.0 x16 slot on the motherboard. 2. Motherboard BIOS/UEFI support for PCIe x16 bifurcation, configurable to "x4x4x4x4" mode or Hyper M.2 X16 mode; 3. All installed drives must be M.2 (M-key) PCIe NVMe SSDs. 4. The system CPU must provide sufficient PCIe 5.0 lanes to support the added drives.

[About Speed] RIITOP Quad NVMe Adapter support Full PCIe 5.0 x16 performance (4x128Gbps), but it requires all devices support PCIe 5.0: Not only M.2 NVMe SSD, but also CPU, PCIe slot. Note: Intel 12th Gen and older CPUs do not support PCIe 5.0.

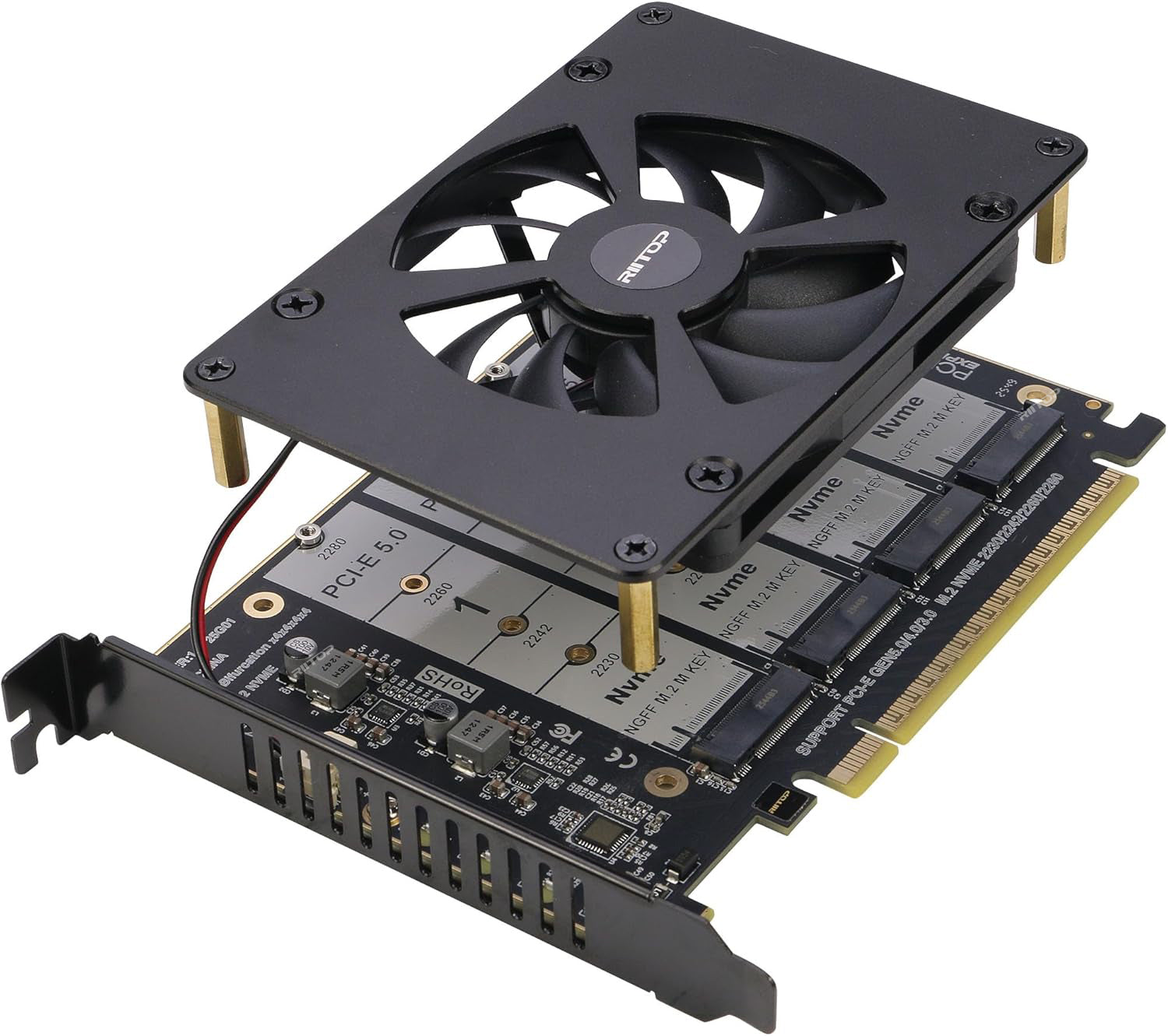

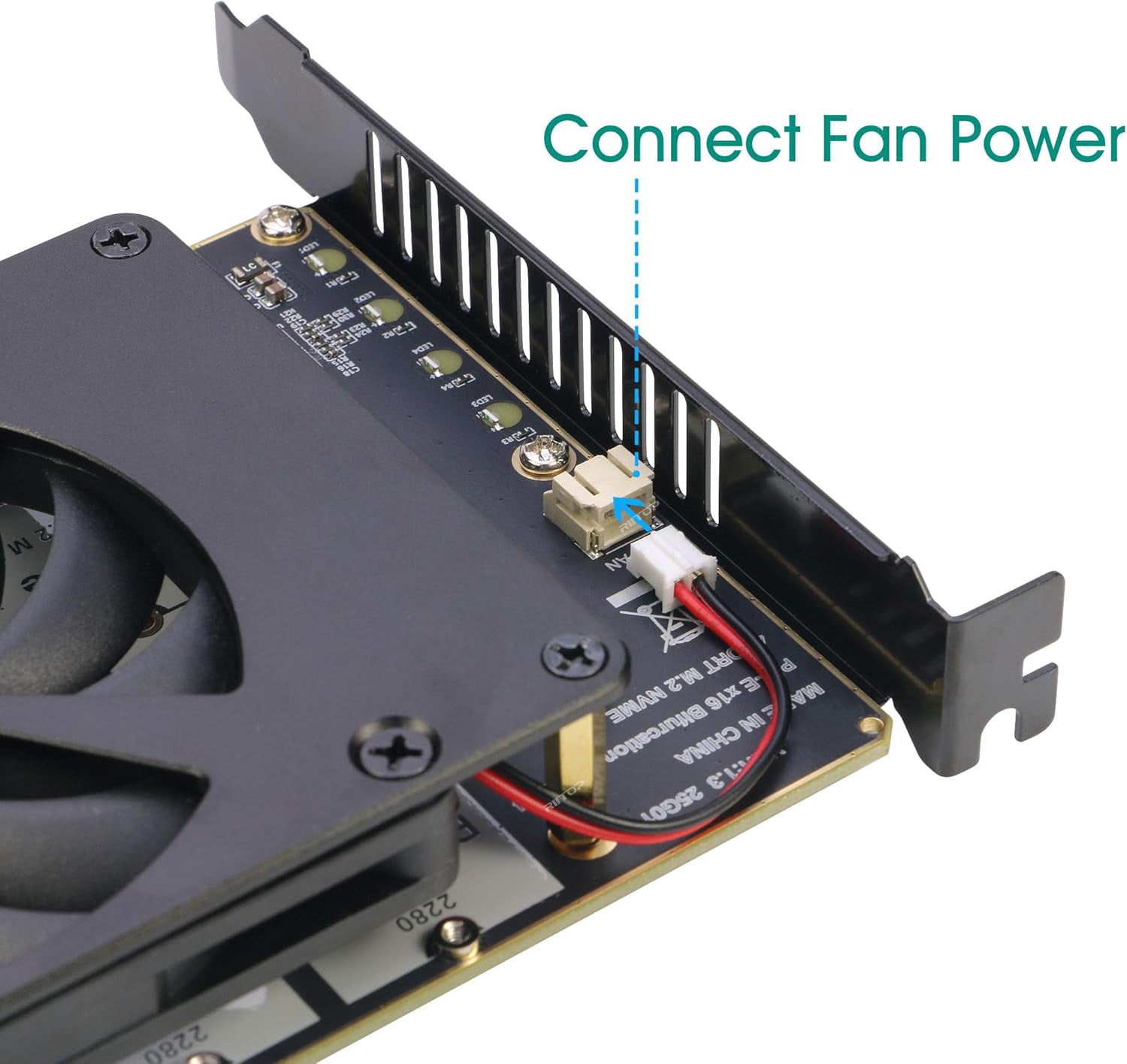

[Design With Fan]RIITOP NVMe PCIe Adapter Features an integrated cooling fan to actively dissipate heat, preventing thermal throttling and ensuring PCIe Gen 5.0 drives keep lower temperture when run high-speed. Each SSD slot is equipped with a dedicated LED indicator for clear, at-a-glance drive status monitoring.

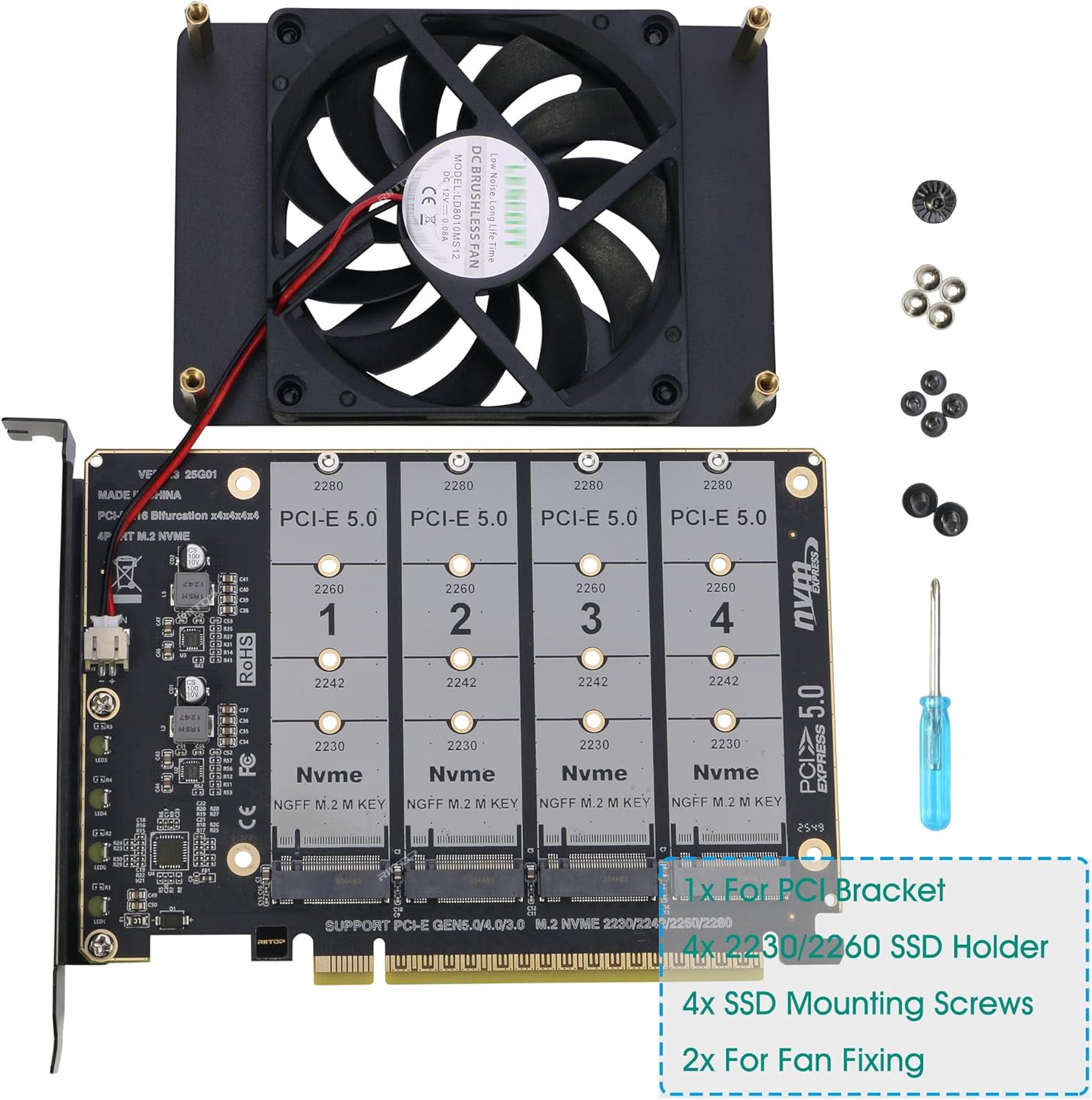

Package Includes:

1x RIITOP Quad NVMe to PCIe 5.0 x16 Adapter Card.
